Description

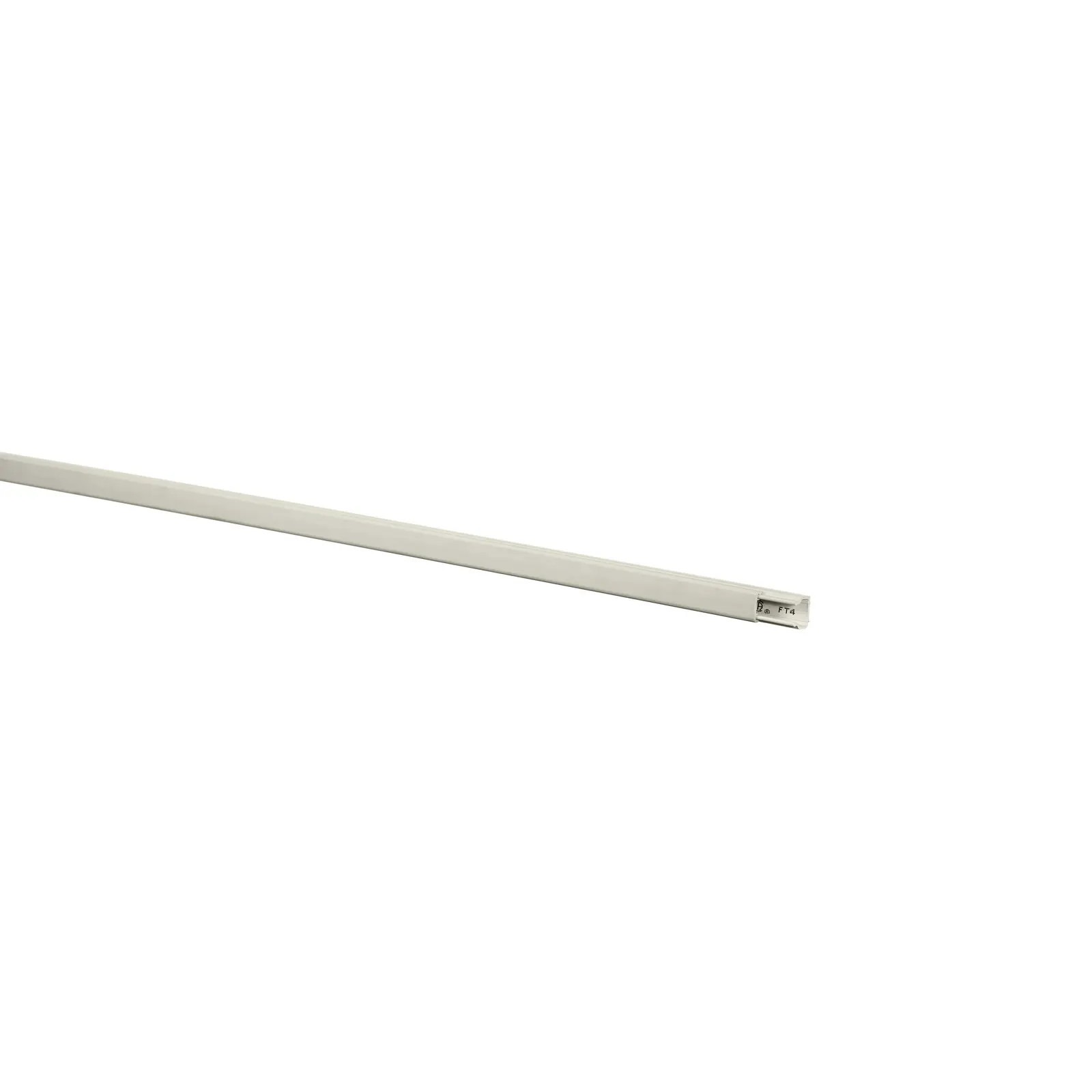

Hubbell PT1ABC7 7-Foot Raceway Base and Cover – Dual-Rated Cable Management for Power & Data

The Hubbell PT1ABC7 7-Foot Raceway Base and Cover provides a clean, code-compliant solution for organizing and protecting power and data cabling in commercial, educational, and office environments. Made from UV-stabilized PVC and finished in office white, this raceway is both functional and unobtrusive. Designed with dual-rated latching channels, it supports both electrical and data installations in a single run.

Featuring an adhesive base and cover, the PT1ABC7 offers fast, tool-free installation. With a UL94V-0 flammability rating, crush resistance of 300 lbs, and impact resistance up to 5 ft. lbs., this raceway is built to meet demanding real-world environments.

Key Features

  • Dual-Rated for Power & Data – Supports single or two-channel configurations for low-voltage and power cabling.

  • Length & Size: 7 feet long, 0.8 inches wide

  • Channel Area: 0.29 sq. in. – Compact, efficient cable routing

  • Adhesive Base & Cover – Easy to mount without hardware; ideal for office and modular furniture applications

  • Material: UV Stabilized PVC – Maintains appearance and durability over time

  • Color: Office white – Clean look for visible wall or desk installations

  • Flame Rating: UL94V-0 – High fire resistance for added safety

  • Operating Temperature: -25.6° to 158°F – Built for various indoor conditions

  • Crush Resistance: 300 lbs

  • Impact Resistance: 5 ft. lbs.

  • Certifications:

    • UL Listed to 600V

    • CSA Certified

Shop our other Networking Supplies!

Why Choose the Hubbell PT1ABC7 Raceway?

The Hubbell PT1ABC7 7-Foot Raceway Base and Cover is ideal for professionals who need a durable, flexible, and standards-compliant raceway system. Its dual-channel support, high resistance ratings, and UL/CSA certifications make it a dependable solution for structured cabling in offices, classrooms, and commercial environments.

Technical Specifications

  • Model: PT1ABC7

  • Length: 7 ft

  • Width: 0.8 in

  • Channel Area: 0.29 sq. in.

  • Color: Office White

  • Material: UV Stabilized PVC

  • Mounting: Adhesive Base and Cover

  • Flammability Rating: UL94V-0

  • Operating Temperature: -25.6° to 158°F

  • Crush Resistance: 300 lbs

  • Impact Resistance: 5 ft. lbs.

  • Certifications: UL Listed (600V), CSA Certified
