Description

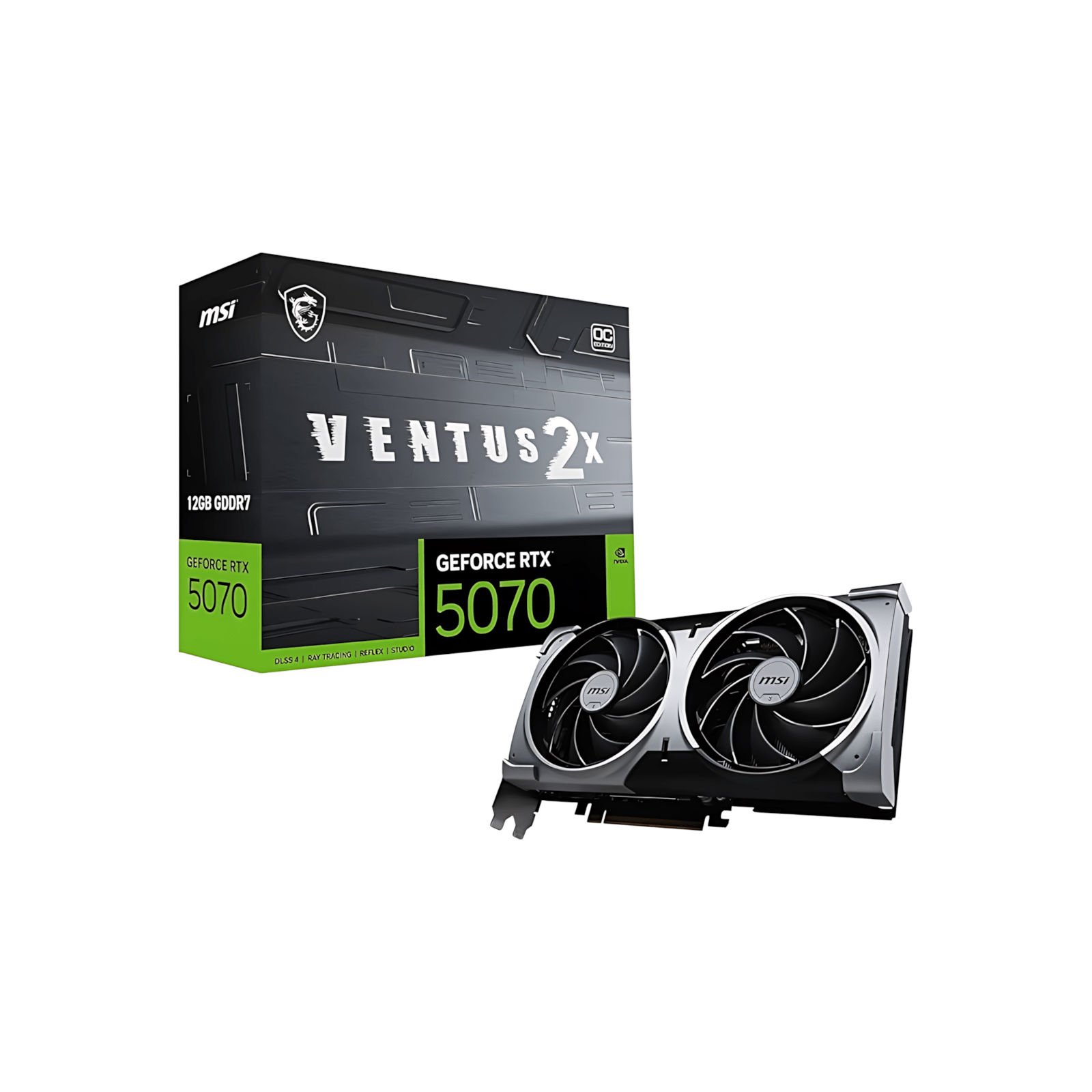

MSI NVIDIA GeForce RTX 5070 Ventus 2X OC 12GB GDDR7 Graphics Card

Unleash next-gen gaming performance with the MSI GeForce RTX 5070 Ventus 2X OC, powered by NVIDIA’s latest Blackwell architecture. Engineered with 12GB of ultra-fast GDDR7 memory, DLSS 4 AI upscaling, and ray tracing technology, this GPU delivers breathtaking visuals and high FPS for immersive AAA gaming, esports, and creative workflows.

With MSI’s dual TORX Fan 5.0 cooling, a reinforced metal backplate, and compact Ventus 2X design, it provides powerful performance in a sleek and durable form factor, ready for your high-performance build.

Key Features

  • GPU & Architecture: NVIDIA GeForce RTX 5070, built on the advanced Blackwell architecture for cutting-edge graphics performance.

  • Memory: 12GB GDDR7 VRAM, 192-bit interface, 28 Gbps speed delivering ~672 GB/s bandwidth for high-resolution textures and smooth gameplay.

  • CUDA Cores: 6144 cores for efficient rendering and accelerated workloads.

  • Boost Clock: Up to 2542 MHz with MSI OC tuning (Extreme Mode up to 2557 MHz via MSI Center).

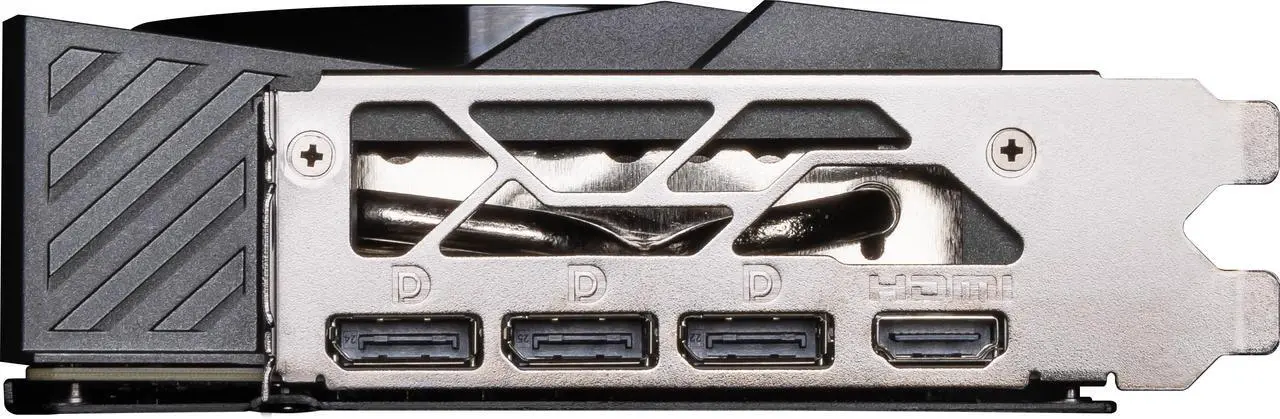

  • Connectivity: 3 × DisplayPort 2.1b and 1 × HDMI 2.1b; supports up to 8K resolution and four simultaneous displays.

  • Cooling Solution:

    • Dual TORX Fan 5.0 with optimized fan blades for increased airflow.

    • Nickel-plated copper baseplate for efficient heat transfer.

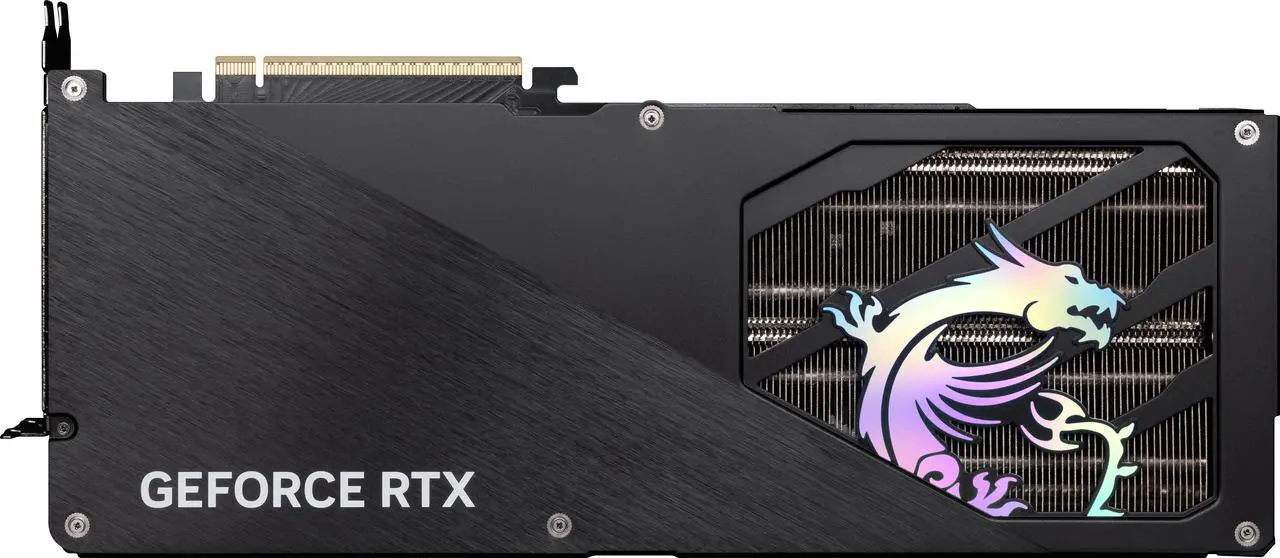

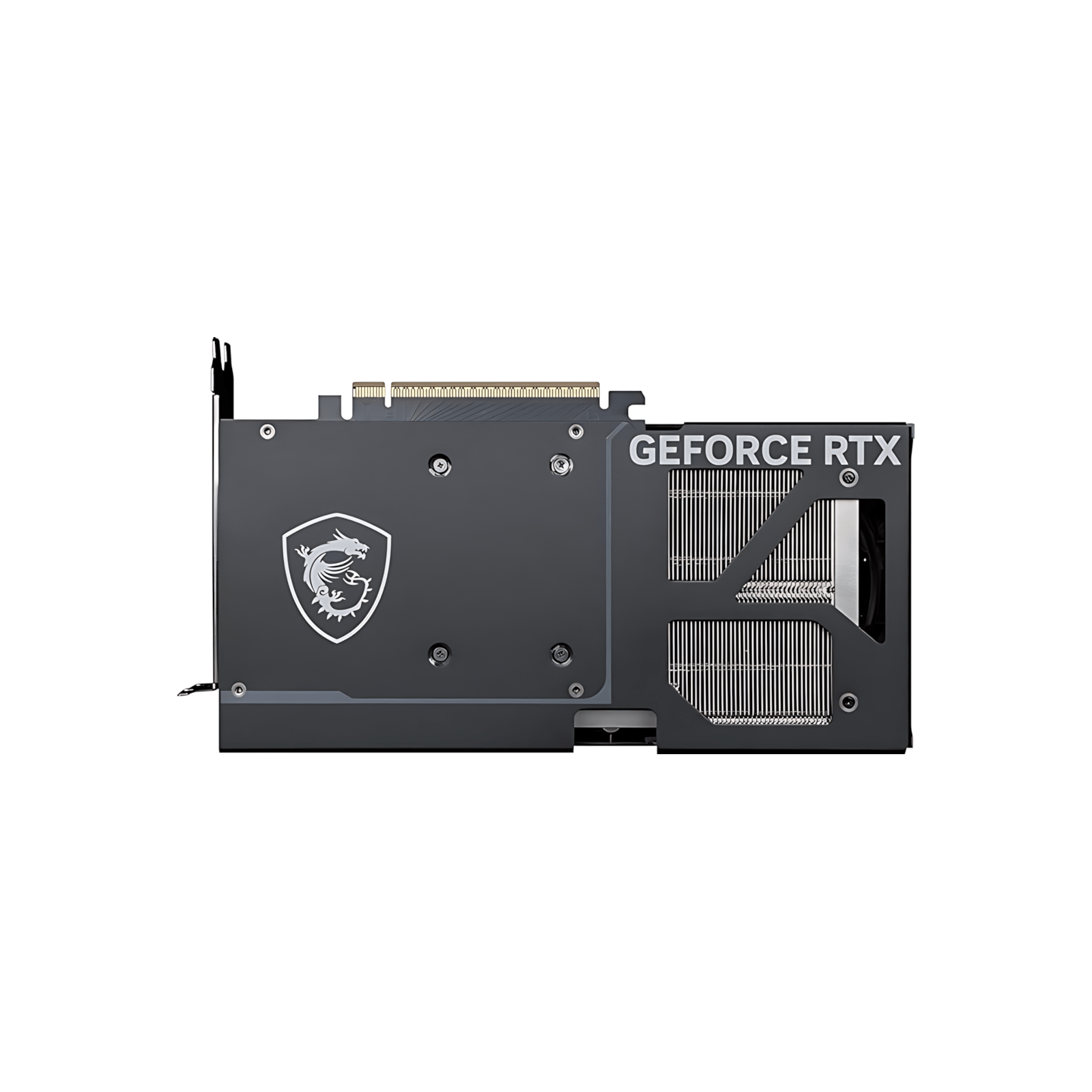

    • Sturdy metal backplate adds structural rigidity.

  • Form Factor: Compact 2.5-slot design (236 × 126 × 50 mm), ideal for mid-tower builds.

  • Power & Requirements:

    • Typical Board Power (TBP): 250W

    • Connector: 12VHPWR (12+4 pin high-power with sense pins)

    • Recommended PSU: 650W minimum

  • API & Technology Support:

    • DirectX 12 Ultimate & OpenGL 4.6

    • NVIDIA DLSS 4 with multi-frame generation

    • NVIDIA Ray Tracing for lifelike lighting and shadows

    • NVIDIA Reflex 2 for ultra-low latency gaming

    • NVIDIA Studio drivers for creative workflows

    • G-SYNC, NVENC/NVDEC, AV1 decoding

Why You Should Buy

  • Next-Gen Gaming Ready: Built for 1440p and 4K high-refresh gaming with support for advanced ray tracing and DLSS 4.

  • AI-Powered Performance: DLSS 4 leverages AI and tensor cores for smoother gameplay and future-proof optimization.

  • Efficient Cooling: MSI’s TORX Fan 5.0 and thermal design keep performance steady under heavy load.

  • Strong Build Quality: Metal backplate and compact design offer both durability and compatibility with modern cases.

  • Future-Proof Connectivity: HDMI 2.1b and DP 2.1 support the latest high-refresh-rate monitors up to 8K resolution.

FAQs

Q: Is the RTX 5070 suitable for 4K gaming?
A: Yes—while using DLSS. Expect smooth performance in AAA titles at 4K with DLSS and excellent FPS at 1440p both with and without DLSS.

Q: What power supply do I need?

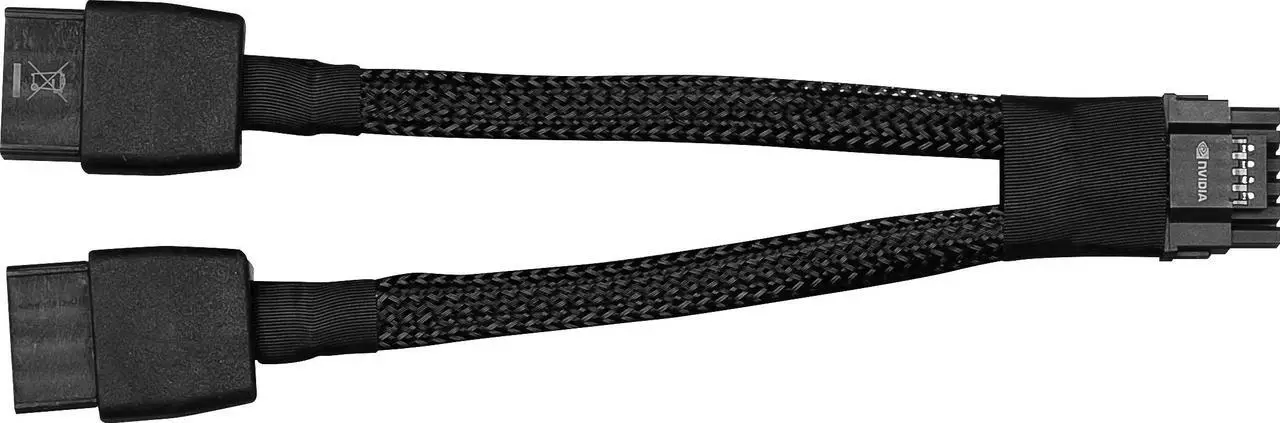

A: A minimum 650W PSU is recommended. The card uses the 12VHPWR (12+4 pin high-power) connector for reliable power delivery. It is recommended to use the adaptor that comes with the card over any 12VHPW cables that come with the PSU.

Q: How big is the card?
A: It measures 236 × 126 × 50 mm and fits in most mid-tower ATX cases.

Q: Does it support VR?
A: Yes, the RTX 5070 is VR-ready, with low latency and high performance for an immersive experience.

Q: What displays can I connect?
A: Up to four displays simultaneously via 3 × DisplayPort 2.1b and 1 × HDMI 2.1b.
