Description
| Manufacturer | Thermaltake Technology Co., Ltd |
| Manufacturer Part Number | CL-F015-PL20BL-A |
| Manufacturer Website Address | http://www.thermaltake.com |
| Brand Name | Thermaltake |
| Product Line | Pure |
| Product Model | TT-2030 |

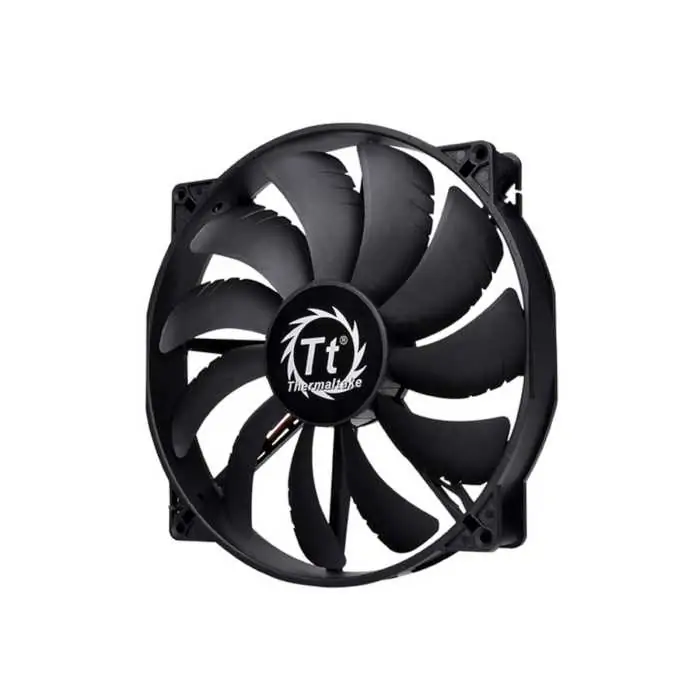

| Product Name | Pure 20 DC Fan |
| Marketing Information | The Thermaltake Pure 20 fan comes with reliable, stable performance and gorgeous vibrant style. Available in 200mm, the Pure 20 fan offers the perfect balance of silence, style and efficiency. High Performance Enhanced Airflow Fan blade designed to focus airflow and reduce noise, creating a torrent of air without creating excess noise. Long life sleeve bearing ong-life bearing offers better reliability and extends life span. Easy to install Shaved frame allow more installation, specially the chassis from Thermaltake. LED version available Pure 20 series are available in LED version, adding cooling aesthetics to your chassis. |
| Product Type | Cooling Fan |
| Fan Information | |
|---|---|
| Number of Fans | 1 |
| Fan Bearing Type | Long Life Sleeve Bearing |
| Fan Speed (Max) | 800 rpm |
| Maximum Airflow | 3671 L/min |
| Airflow Details | 1 x 129.639CFM |
| Noise Levels (A-Weighted) | 28.2 dB(A) |
| Interfaces/Ports | |
| Connectors | 3-pin |
| Power Description | |
| Maximum Power Consumption | 2.40 W |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Product Color | Black |
| Maximum Fan Diameter | 7.87″ (200 mm) |
| Fan Diameter Details | 1 x 200mm |
| Maximum Fan Thickness | 1.18″ (30 mm) |
| Fan Thickness Details | 1 x 30mm |
| Fan Height | 1.18″ (30 mm) |
| Fan Width | 7.87″ (200 mm) |
| Fan Depth | 7.87″ (200 mm) |
| Weight (Approximate) | 304.4 g |
| Miscellaneous | |
| Application/Usage | Chassis |
| Certifications & Standards | CE |
| Warranty | |
| Limited Warranty | 3 Year |
