Description
Key features
With edge-to-edge visibility, clean contemporary styling and two Silent Series LED fans, the Focus makes your hardware the center of attention
- Six total fan positions for high-airflow capability
- Filtered front, top and base air intakes for a dust free interior
- Support for high-profile CPU coolers and multiple radiator configurations

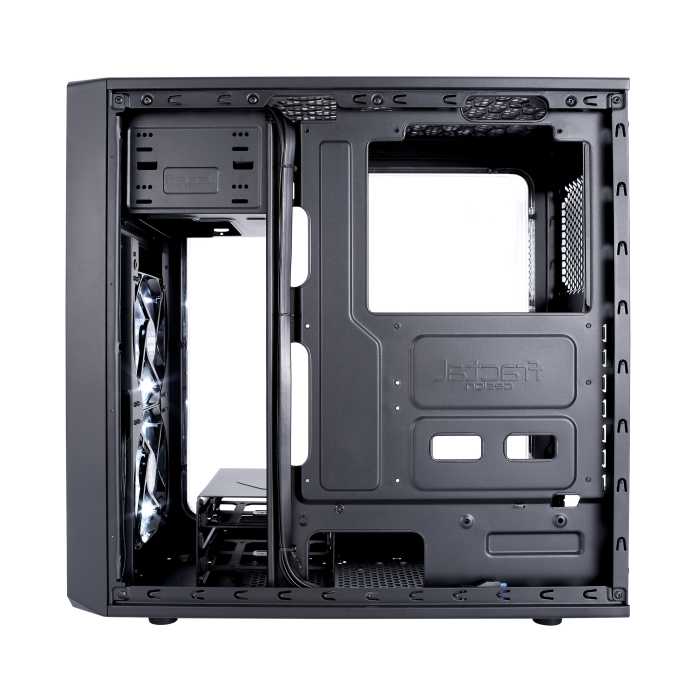

- 18-25 mm of space for cable routing behind the motherboard plate
- Support for graphics cards up to 380 mm long without compromising hard drive space
- Two vibration dampened universal drive bays with support for 6TB+ HDDs and 15 mm SSDs, plus an additional 2.5″ mount behind the motherboard tray
- Front I/O panel includes USB 3.0, USB 2.0 and audio jacks
- Kensington anti-theft padlock bracket and re-usable ventilated expansion slot covers included
Specifications |
|
|---|---|
| 3.5″ or 2.5″ Drive capacity | 2 |
| Dedicated 2.5″ drive capacity | 1 |
| Dedicated 5.25″ drive brackets | 2 |
| Expansion slots | 7 |
| Front ports | 1x USB 3.0, 1x USB 2.0, Audio in/out, Power button, Reset button |
| Total fan mounts | 6 |

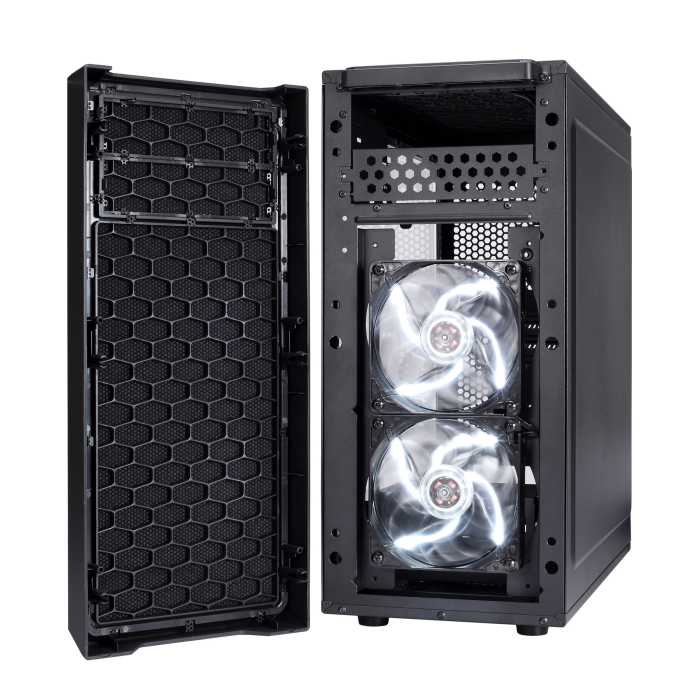

| Front fan | 2x 120/140 mm (2x Silent Series LL 120 mm LED fans included) |
| Top fan | 2x 120/140 mm |
| Rear fan | 1x 120 mm |
| Bottom fan | 1x 120/140 mm |
| Dust filters | Top fans, Bottom fan + PSU, Front fans |
| Padlock and Kensington lock support | Yes |
| Captive thumbscrews | Both side panels |

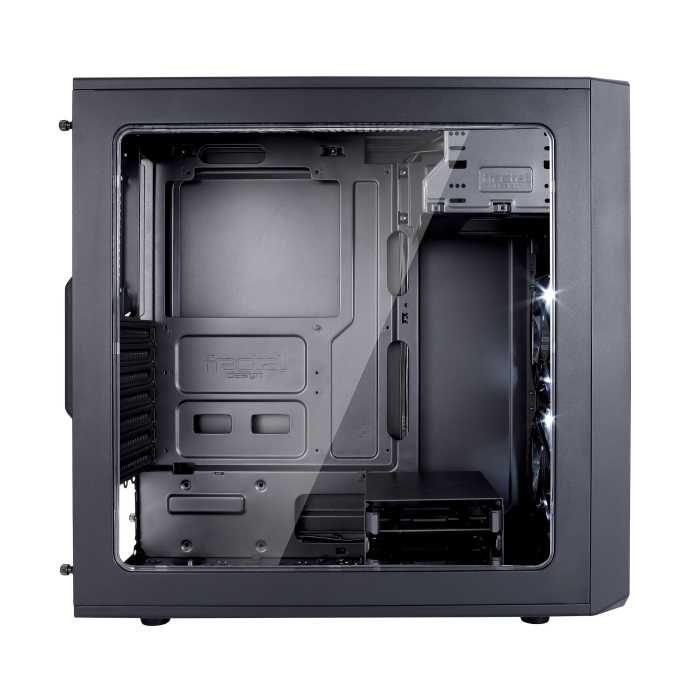

| Left side panel | Clear transparent window |
| Right side panel | Steel |
Compatibility |
|
|---|---|
| Power supply type | ATX |
| Motherboard compatibility | ATX, mATX, ITX |
| Front radiator | 120/240 mm, 140/280 mm (280 mm requires that the bottom 5.25″ slot is unused) |
| Top radiator | 240 mm |
| Rear radiator | 120 mm (max width 120 mm) |
| PSU max length | 230 mm |
| GPU max length | 380 mm |
| CPU cooler max height | 165 mm |
| Cable routing space | 18-25 mm |
